Volvo I-Shift transmission fluid capacity is not one universal number for every VNL, VHD, FH or FM truck. The exact amount depends on the I-Shift transmission variant, hardware such as crawler gears/retarder/oil cooler, and the truck’s chassis configuration. On current North American VNL documentation, Volvo tells the operator to verify I-Shift oil level with the truck level and keep the oil between the minimum and maximum marks on the transmission sight glass rather than relying on a generic quart number.
That is the most important correction to older online guides. A table that says “VNL Gen 2 = 16 qt, VNL Gen 3 = 15.5 qt, FH = 15 qt” may look useful, but it can be wrong for the actual transmission fitted to the truck.
This 2026 guide explains how to identify the correct I-Shift fluid quantity, which Volvo transmission-oil specifications are currently listed, how to check oil level on current trucks, what the real service-interval guidance says, and what tools make a fluid service cleaner and safer.
There is no single safe “Volvo I-Shift capacity” for every truck. Identify the exact transmission and chassis first. Volvo’s current VNL Driver Guide says the truck must be level and the I-Shift oil should sit between the MIN and MAX marks on the sight glass. For oil type, Volvo Trucks currently lists Genuine I-Shift fluid in SAE 75W-80 specifications 97307/97318 and SAE 75W-90 specifications 97315/37319. Use the specification assigned to your exact transmission—not whichever viscosity is easiest to find.
- Capacity is transmission-specific. Do not buy fluid from a truck-model-only chart.
- Current VNL level check: truck level, oil between MIN and MAX on the transmission sight glass.
- Current instrument cluster can display transmission oil level/temperature on supported VNLs.
- Volvo currently lists more than one I-Shift oil specification: 75W-80 97307/97318 and 75W-90 97315/37319.
- “API GL-4 75W-80” alone is not enough. Match the Volvo approval/specification.
- Oil drain intervals can extend up to 500,000 miles in qualifying on-highway applications, but that is not a universal fixed interval for every duty cycle.
- I-Shift hardware varies. Standard, Severe Duty, crawler-gear, direct-drive and overdrive variants should not be assumed to have identical fluid volume.
- Use chassis-specific Driver Guide/eMedia information when you need the exact service fill quantity, plug torque and maintenance interval.

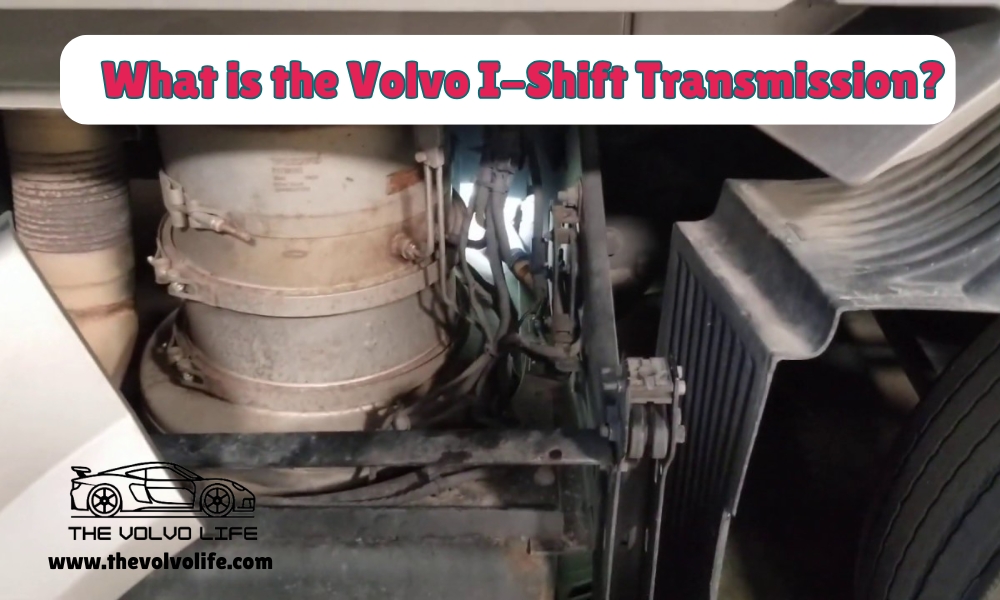

What Is the Volvo I-Shift Transmission?
I-Shift is Volvo Trucks’ automated manual transmission. It uses an electronically controlled manual gearbox and automated clutch/shift control rather than a traditional torque-converter automatic.
Volvo’s current North American I-Shift page describes the control system as continuously monitoring grade, speed, vehicle weight and engine load to decide when to shift or hold a gear.
The I-Shift family now includes several configurations, including:
- 12-speed standard I-Shift
- I-Shift for Severe Duty
- 13-speed crawler-gear configuration
- 14-speed crawler/ultra-low configuration
- Direct-drive and overdrive variants in global FH/FM applications
Different transmission hardware and truck options can change the quantity of oil retained in the gearbox/cooler system. That is why the exact transmission code and chassis number matter more than the badge on the hood.
Volvo I-Shift Transmission Fluid Capacity: The Correct 2026 Answer
The old article used a model-only table with values such as 14.5–17.5 quarts and then later gave a different 16–20 quart range. Those numbers were internally inconsistent and were not tied to an exact Volvo transmission code.
| What You Know | Can You Safely Determine Exact Capacity? | Correct Next Step |
|---|---|---|
| “Volvo VNL” only | No | Identify chassis + transmission variant |
| “Volvo FH” or “Volvo FM” only | No | Identify AT/ATO/SP transmission code and options |
| Exact transmission code but no chassis/options | Closer, but still verify | Check Driver Guide/eMedia/service information |
| Chassis/VIN + Volvo service information | Yes | Use the listed service fill and final level procedure |
| Current VNL with sight glass | Final level is directly verifiable | Truck level; oil between MIN and MAX marks |
For current North American VNLs, Volvo’s Driver Guide explicitly says: with the vehicle level, I-Shift oil should be between the maximum and minimum levels on the sight glass, and only Volvo-approved oils should be used.
That sight-glass instruction is more reliable than pouring in a memorized “16 quarts” and assuming the level must be correct.
How to Identify Your Exact I-Shift Transmission
Before ordering fluid, record:
- Truck chassis/VIN
- Model and build year
- Transmission model/code from the identification label or Volvo service information
- Whether the truck has Severe Duty/crawler gear equipment
- Whether a transmission oil cooler or other configuration-specific hardware is present
- Duty cycle: on-highway, vocational, heavy haul, construction, etc.
On current global FH/FM specification pages, Volvo lists multiple I-Shift types such as AT2412, AT2612 and ATO2612, with additional variants available on some FH configurations. That alone shows why “FH capacity” is not a single service specification.
Enter the truck’s chassis number in Volvo Driver Guide or use Volvo service/eMedia information. Chassis-specific documentation is designed to show information relevant to that exact truck configuration.
Which Fluid Does Volvo I-Shift Use?
Do not reduce the answer to “any synthetic 75W-80 GL-4.” Volvo Trucks currently lists multiple Genuine I-Shift transmission-oil specifications.
| Volvo Genuine I-Shift Fluid | Current Listed Volvo Specs | Important Note |
|---|---|---|
| SAE 75W-80 | 97307, 97318 | Use only when assigned to the exact transmission/application |
| SAE 75W-90 | 97315, 37319 | Different spec/viscosity; do not substitute automatically |
The original article also mentioned “97342 (VDS-4 approved)” in the FAQ. That mixes unrelated naming and should not be used as a transmission-fluid rule. VDS is commonly associated with Volvo diesel engine-oil specifications, while the I-Shift transmission-fluid page itself lists the transmission specifications above.
Two oils can both say 75W-80 while having different approvals and friction/wear characteristics. Use the Volvo transmission specification assigned to your I-Shift, not just the SAE grade.

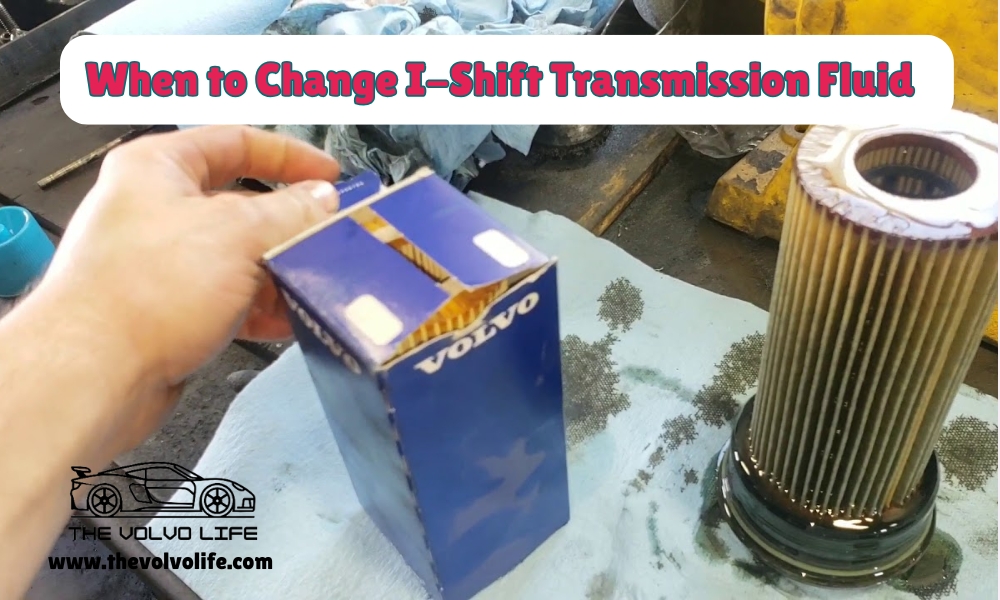

Volvo I-Shift Oil Change Interval
The old article gave universal “250,000-mile standard drain / 500,000-mile extended drain” and 5,000/10,000-hour values. Those numbers should not be applied to every truck without checking the actual service schedule.
What Volvo does currently state publicly is:
- Volvo Genuine I-Shift fluid is approved for up to 500,000 miles between changes.
- Volvo’s I-Shift product guide says on-highway oil-drain intervals can extend to 500,000 miles.
- Actual maintenance should follow the truck’s application and service information.
Severe-duty, vocational, contaminated-fluid, leak-repair or component-repair situations can require a different service decision.
How to Check I-Shift Transmission Oil Level on a Current VNL
Current Volvo VNL Driver Guide information provides a much better answer than the old “remove the fill plug and stick a finger/zip tie in the hole” method.
Park the Truck Level
Volvo specifies that the vehicle should be level for the transmission sight-glass level check.
Secure the Vehicle
Set the parking brake, place the transmission in Neutral and chock the wheels before working around the truck.
Inspect for Leaks
Volvo’s pre-trip guidance says to check the transmission and, where fitted, cooler hoses/fittings for leaks.
Read the Sight Glass
The oil level should be between the minimum and maximum marks. Use only Volvo-approved oil when correction is required.
Use the Instrument Oil-Level Information Where Equipped
Current VNL instrument documentation includes a Transmission Oil Level display. Volvo says this check should be performed with the key in accessory mode before the engine is running.
If the sight glass already shows the correct level, adding a memorized amount from an internet capacity table can overfill the transmission. Find and repair the reason for any unexplained low level instead of repeatedly topping off.
Contextual Tool: Mityvac MV7201 Fluid Evacuator/Dispenser
Mityvac MV7201 Fluid Evacuator Plus
A 2.3-gallon (8.8 L) manual evacuator/dispenser with chemical-resistant reservoir, overflow prevention and pressure/vacuum operation. It is useful as a clean fluid-transfer tool when the service procedure calls for pumping transmission oil into an accessible fill point.
Changing I-Shift Fluid: Safer Service Workflow
The exact drain/fill procedure and plug torque belong to the specific transmission service information. Do not assume the old article’s “3/8-inch square plug” or “about 44 lb-ft” applies to your gearbox.
Confirm Transmission + Oil Spec
Do this before opening the transmission or buying the service quantity.
Confirm the Service Fill Quantity
Use chassis/transmission-specific service information, including any cooler/retarder configuration.
Secure and Level the Truck
Parking brake, Neutral, wheel chocks and safe access beneath the vehicle are essential.
Open/Inspect the Fill Point Before Draining
Do not drain a transmission until you know the correct fill point can be serviced and the correct fluid is available.
Drain and Inspect the Oil
Look for abnormal metal/debris, water contamination, burnt odor or evidence of leakage.
Refill With the Correct Volvo-Approved Fluid
Use the exact service quantity/procedure—not a generic VNL or FH number.
Torque Service Plugs to the Exact Specification
Use the transmission-specific service value and appropriate sealing hardware.
Verify Final Level and Leaks
On current VNL I-Shift applications, confirm the sight-glass level is between MIN and MAX with the truck level.

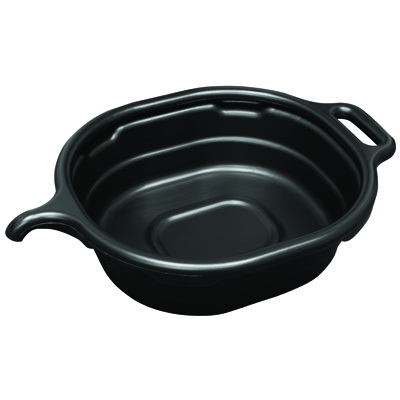

Contextual Tool: Lisle 17972 4.5-Gallon Oval Drain Pan
Lisle 17972 4.5-Gallon Oval Drain Pan
A current 4.5-gallon black oval drain pan with a larger catch area, anti-splash lip, multiple hand positions and a 1.125-inch pour spout. Lisle 17972 supersedes the older 17942 design and is a cleaner current recommendation for transmission-fluid service.
Use a Torque Wrench—Do Not Guess Plug Torque
The original article stated that the fill plug is “usually around 44 lb-ft.” That is exactly the kind of shortcut that should be removed from a transmission-fluid guide.
Drain/fill plugs can differ by gearbox generation, plug design and service procedure. An under-tightened plug can leak; an over-tightened plug can damage threads or sealing surfaces.
GEARWRENCH 85077 Electronic Torque Wrench
A 1/2-inch electronic torque wrench covering 25–250 ft-lb, with target-torque vibration/buzzer/LED alerts and manufacturer-listed ±2% clockwise accuracy through most of its working range.
What Does Low I-Shift Fluid Actually Look Like?
Do not diagnose fluid level from “rough shifting” alone. I-Shift shift quality is also influenced by clutch condition, actuator/control functions, software, sensor inputs and driveline issues.
Stronger clues for a fluid-related problem include:
- Visible transmission/cooler-line leak
- Oil below the permitted sight-glass range
- Very-low transmission-oil-level warning on supported current trucks
- Abnormal transmission oil temperature
- Evidence of contamination after water ingress or component failure
Current VNL instrument documentation says the truck can display transmission oil temperature and oil level. If oil temperature exceeds the specified high-temperature threshold, the display issues a red warning/stop notification.
Do Not Blame Every I-Shift Shift Problem on the Fluid
| Symptom | Possible Fluid Branch | Other Important Branches |
|---|---|---|
| Harsh shifts | Wrong/low/contaminated oil | Clutch adaptation, actuator, sensor, software, driveline |
| Delayed engagement | Level/leak issue | Clutch/actuator/control fault |
| Transmission warning | Temperature/level may be involved | Read DTCs before deciding |
| Grinding/noise | Lubrication issue possible | Mechanical internal damage or clutch/driveline issue |
| Won’t select gear | Do not assume oil | TECU, actuator, clutch, air/electrical/control diagnosis |
Heavy-Duty Scan Before Parts or Fluid Guessing
If the I-Shift has a warning, poor engagement or abnormal shifts, read transmission DTCs and live data before assuming the oil change will fix it.
Volvo’s Premium Tech Tool supports transmission-related diagnostics, tests, calibrations and Transmission ECU programming on supported Volvo trucks. It remains the manufacturer-level reference.
For owner-operator or independent first-pass diagnosis, a capable heavy-duty scanner can still be useful for DTCs and live data.
LAUNCH CRP129HD
A heavy-duty full-system scanner supporting J1939/J1708-class commercial-vehicle diagnostics, transmission live data and multiple service functions on compatible trucks. LAUNCH lists Volvo heavy-duty coverage.
Premium Tech Tool and I-Shift
Volvo Trucks’ current Premium Tech Tool page says PTT supports Volvo Trucks from 1998 and newer and can read/clear DTCs, perform diagnostics, tests and calibrations. On OBD2013-and-newer vehicles, selective ECU programming includes the Transmission ECU (TECU).
Use workshop-level diagnosis when:
- Transmission warning returns after level/spec is confirmed
- Clutch learning/adaptation is required
- Shift actuator faults are stored
- TECU communication/programming is involved
- The truck will not select a gear
- Oil contains metal/debris or evidence of internal damage
Standard I-Shift vs Severe Duty vs Crawler: Why Capacity Can Differ
Volvo offers different I-Shift hardware packages rather than one universal gearbox.
Current North American Volvo information describes I-Shift with Crawler Gears as adding one or two crawler gears to the Severe Duty transmission, producing 13- or 14-speed variants. Volvo’s global FH/FM pages also list different direct-drive and overdrive I-Shift transmission codes.
This is why capacity research must begin with the transmission—not with “VNL,” “FH,” “FM” or “D13.” The engine model does not uniquely identify the gearbox oil quantity.
Does a D13 Engine Tell You the I-Shift Fluid Capacity?
No.
The old FAQ said older D13 trucks can “take slightly more,” but engine displacement is not the correct way to determine transmission fluid volume. A D13 can be paired with different I-Shift variants and truck configurations.
Use the gearbox/chassis identification instead.
Is Volvo I-Shift Fluid the Same as ATF?
No. I-Shift is an automated manual transmission and uses Volvo-approved manual-transmission oil specifications, not generic passenger-car automatic transmission fluid.
If a truck is low enough to require oil, verify the exact Volvo-approved transmission-oil specification before adding anything. Mixing the wrong oil can compromise lubrication and makes later diagnosis more difficult.
Can You Mix 75W-80 and 75W-90 I-Shift Fluids?
Do not assume they are interchangeable simply because Volvo lists both viscosities in the I-Shift product family.
The specification numbers differ. Use the oil specified for the exact transmission. If the existing oil cannot be identified, get the chassis-specific service information before topping up.
How Much Fluid Should You Buy for an I-Shift Service?
First obtain the exact service fill quantity for the gearbox. Then buy enough of the correct specification to complete the refill with a reasonable sealed top-up margin.
Do not reverse the process by buying “20 quarts because the internet says that covers all I-Shifts.” A truck with an unexpected variant, cooler configuration or different approved oil can leave you with the wrong service plan.
Signs the I-Shift Fluid Should Be Investigated Early
- Oil visibly below the specified level
- Leak at transmission housing, cooler, hoses or fittings
- Water/milky contamination
- Burnt odor with abnormal temperature history
- Significant metal/debris during drain inspection
- Recent transmission/component repair
- Unknown or mixed oil specification
Color alone is not a complete condition test. Oil can darken in service without proving transmission failure.

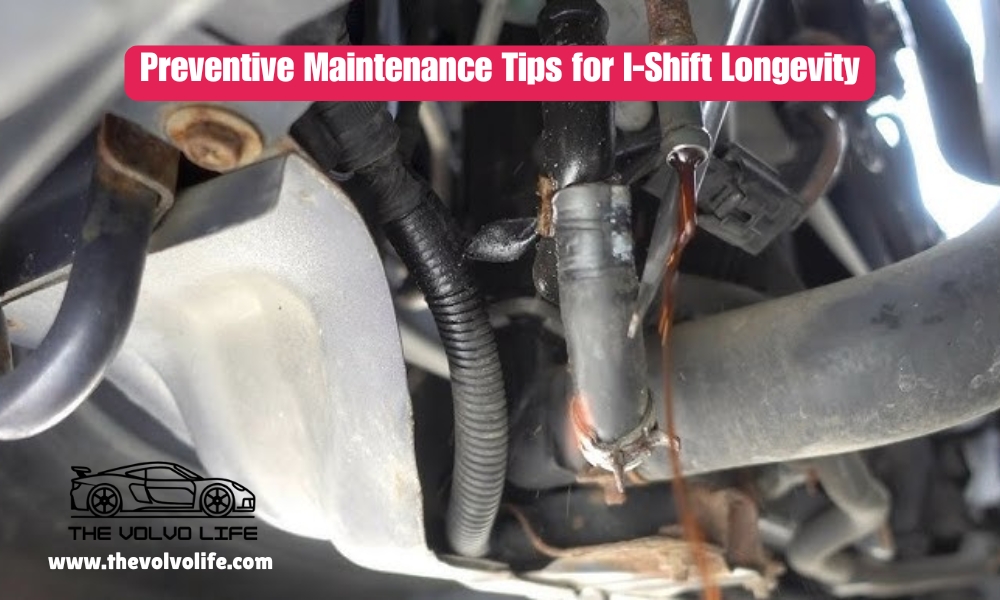

Preventive Maintenance for I-Shift Longevity
- Follow the chassis-specific service schedule.
- Use only the specified Volvo-approved transmission oil.
- Check for leaks during pre-trip/service inspections.
- Keep the level within the specified range.
- Repair cooler-line or seal leaks instead of repeatedly topping off.
- Read transmission DTCs when shift behavior changes.
- Keep I-Shift software/calibration current when Volvo service information requires it.
- Do not ignore a very-low oil-level or high-temperature warning.
DIY vs Volvo Workshop
| Task | Experienced DIY / Fleet Shop | Volvo-Level Service Recommended |
|---|---|---|
| Visual leak inspection | Yes | If source is unclear |
| Sight-glass level check | Yes, with safe access | If warning disagrees with physical level |
| Routine drain/refill | Possible with exact service info/equipment | If specification or procedure is uncertain |
| DTC scan | Heavy-duty scanner | PTT for deeper guided diagnosis |
| Clutch learning/calibration | Tool-dependent | Often PTT/workshop-level |
| TECU programming | No generic shortcut | PTT/authorized-capable setup |
| Metal/debris/internal noise | Stop and inspect | Transmission specialist |
Video: Volvo I-Shift Reference
The original article included this I-Shift video. Keep it for general visual context, but use the truck’s chassis-specific Volvo service information for fluid quantity, plug torque and refill procedure.
Related Volvo Truck Guides
💡 Evans Torres Tip: On every Volvo I have owned, I always keep a full digital service record from day one. When something goes wrong — and eventually something always does — having that history makes diagnosis faster and often saves money at the mechanic. Start your records today, even if the car is not new.
Frequently Asked Questions
There is no single safe quart figure for every I-Shift. The service quantity depends on the exact transmission and truck configuration. Identify the transmission code/chassis and use Volvo service information; on current VNLs, final level is checked between MIN and MAX on the sight glass.
Volvo Trucks currently lists Genuine I-Shift 75W-80 fluid under specifications 97307/97318 and 75W-90 under 97315/37319. Use the specification assigned to your exact transmission.
No. Volvo’s current Genuine I-Shift fluid page also lists 75W-90 products under different Volvo specification numbers.
Do not choose by viscosity/API wording alone. The oil needs the correct Volvo transmission specification/approval for the exact I-Shift application.
Volvo’s current Driver Guide says to keep the truck level and verify that transmission oil is between the MIN and MAX marks on the sight glass. Supported current VNLs also provide transmission oil-level information in the instrument display.
Volvo says qualifying on-highway drain intervals can extend up to 500,000 miles with the appropriate I-Shift fluid/application. Use the truck’s actual service schedule because duty cycle and configuration matter.
It is an automated manual transmission (AMT): the mechanical gearbox/clutch concept is manual-style, while electronic controls automate clutching and gear selection.
No. The same engine family can be paired with different I-Shift transmissions and truck configurations. Capacity is determined from the transmission/chassis information, not engine displacement alone.
Low or incorrect oil can contribute to problems, but hard shifting can also come from clutch, actuator, sensor, software or driveline faults. Check level and DTCs before assuming an oil change is the fix.
A capable heavy-duty J1939/J1708 scanner can provide first-pass transmission DTC/live data on compatible trucks. Volvo Premium Tech Tool is the manufacturer-level platform for deeper diagnostics, tests, calibrations and supported TECU programming.
Sources & Verification
Primary and Current Sources Used for This 2026 I-Shift Guide
- Volvo Trucks USA — Current I-Shift Transmission Overview
- Volvo Trucks USA — Genuine I-Shift Transmission Fluid 75W-80 / 75W-90 Specifications
- Volvo Trucks Driver Guide — Current VNL I-Shift Sight-Glass Level Check
- Volvo Trucks Driver Guide — Transmission Oil Level and Temperature Display
- Volvo Trucks Driver Guide — Pre-Trip Safety / Leak Inspection / Service Information
- Volvo Trucks North America — I-Shift Product Guide / Up-to-500,000-Mile On-Highway Oil Drain Interval
- Volvo Trucks USA — Premium Tech Tool Diagnostics, Calibration and TECU Programming
- Volvo Trucks Global — Chassis-Specific Driver Guide
- Volvo Trucks — Current FH I-Shift Transmission Variants
- Volvo Trucks — Current FM I-Shift Transmission Variants
- GEARWRENCH — 85077 Electronic Torque Wrench
- LAUNCH — CRP129 HD Heavy-Duty Diagnostic Tool
Final Thoughts
The correct Volvo I-Shift transmission fluid capacity comes from the exact transmission/chassis—not a universal VNL, FH or D13 number.
For a current VNL, Volvo’s own level procedure is straightforward: level truck, approved oil, sight glass between MIN and MAX. For a full drain/refill, identify the gearbox and use chassis-specific service information for the actual service quantity and plug torque.
Volvo currently lists multiple I-Shift fluid specifications, so do not select oil by “synthetic 75W-80” alone. And while qualifying on-highway drain intervals can extend to 500,000 miles, the correct maintenance interval still depends on the truck’s application and service schedule.
If shift quality is abnormal, scan the transmission before assuming fluid is the cause. Low level, wrong oil and leaks matter—but so do clutch, actuator, sensor, software and TECU faults.
My Top Picks at a Glance
For this I-Shift fluid-service keyword, these three products cover the most useful real-world jobs: clean fluid transfer, accurate fastener torque and heavy-duty transmission diagnostics.
PREMIUM FLUID-SERVICE PICK
Mityvac MV7201
A premium 8.8-liter fluid evacuator/dispenser with manual vacuum/pressure operation. One of Mityvac’s strongest-selling fluid-service products and a useful clean-transfer tool for workshop fluid work.
PREMIUM TORQUE PICK
GEARWRENCH 85077
A 25–250 ft-lb electronic 1/2-inch torque wrench with vibration, audible and LED target alerts. A strong shop-quality choice when the exact Volvo drain/fill-plug torque must be applied accurately.
TOP HEAVY-DUTY DIAGNOSTIC PICK
LAUNCH CRP129HD
A popular heavy-duty full-system scan tool with J1939/J1708-class commercial coverage, transmission live data and Volvo-compatible diagnostics on supported trucks. Use Volvo PTT when deeper I-Shift calibration/programming is required.
