How To Reset Volvo Oil Level Without Stress? My Quick Trick!

An “Oil level low” or “Oil level high” message on modern Volvos points to either an actual fill issue or an oil reading taken under the wrong conditions. Electronic dipstick cars don’t have a true “reset” button; they re-measure and then clear the message once the level is corrected and a valid reading is taken. The steps below show how to trigger a clean measurement on SPA/CMA models (XC90 2016+, XC60 2018+, XC40, S60/S90/V60/V90) and earlier P3 cars with an electronic oil gauge. For older models with a physical dipstick, use the stick to set the level — there’s no electronic reset. If you also need to clear the service reminder, see our separate guide on the maintenance light. For related context, you may also want to read how to reset service light 1993 Volvo.

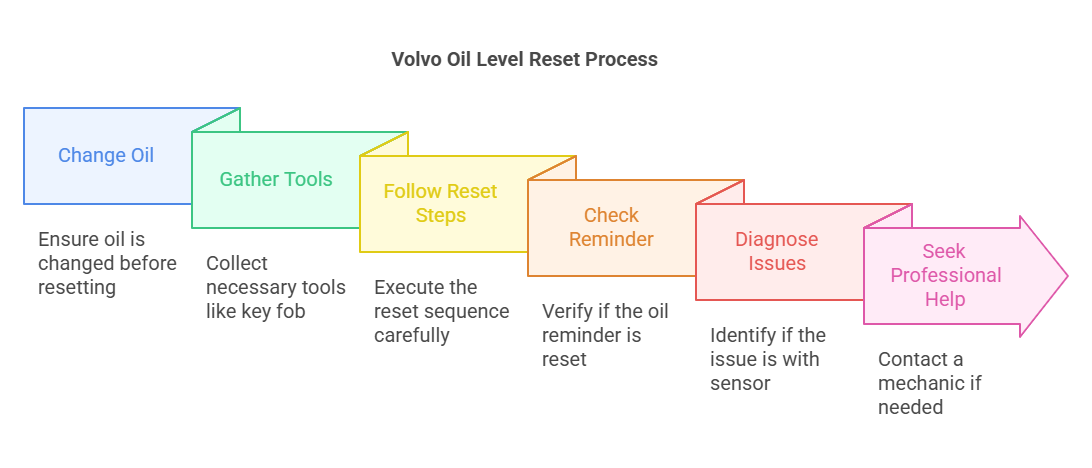

Before You Begin: What “Resetting” the Volvo Oil Level Really Means

Volvo doesn’t provide a software “reset” button for oil level. The system relies on an electronic sensor that reports a value after specific conditions are met: normal operating temperature, level ground, and a short waiting period after shutdown. Triggering a fresh measurement is what owners think of as a reset. Once the engine actually has the correct quantity of oil, the warning disappears during or after that valid reading. Persistent warnings usually mean overfill/underfill, severe fuel dilution (diesel short-trips), or a sensor/wiring fault rather than a software glitch.

Tools, Menus, and Access You Need to Re‑Measure Oil Level on Modern Volvos

No special tools are required for a basic re-measure — just a level parking spot, a warmed engine, and access to the vehicle’s Car Status/Oil Level screen. Menu names vary by generation: SPA/CMA cars use the center display (Car Status → Status → Oil Level → Measure), while late P3 cars (circa 2011–2016) often show Oil Level under My Car → Service & Repair. Classic P2/P80-era models typically have a physical dipstick; use the stick and top up to spec with VCC-approved oil. Advanced adaptation (after sensor replacement) may require VIDA or a capable Volvo scanner.

Need to clear the maintenance reminder after an oil change? Use our step-by-step for the Volvo service light reset, or the model-specific guide for the XC60 maintenance light. Those are separate from oil level measurement.

Step-by-Step: How To Reset (Re‑Measure) Volvo Oil Level by Model Generation

These steps trigger a clean measurement on SPA/CMA and late P3 cars. The key is temperature and timing; the car must be level, recently at operating temp, and undisturbed while it takes the reading. Correct the oil quantity before measuring if you already know it’s low or overfilled; otherwise the message will simply return.

1. Warm the engine fully: Drive 10–15 minutes until the temperature gauge reaches normal. Avoid idling — steady driving heats oil uniformly.
2. Park on a level surface: A flat spot is vital. Even slight slopes can skew the reading and block the measurement.
3. Shut the engine off and keep doors/hood closed: Turn the car off, set the parking brake, and don’t open anything yet.
4. Wait 2–5 minutes (model dependent): Most SPA/CMA cars need about 2–3 minutes; some P3 models need closer to 5. Don’t touch pedals or accessories.
5. Open the Oil Level screen: SPA/CMA: Center display → Car Status → Status → Oil Level → Measure. P3: My Car → Service & Repair → Oil Level → Measure.
6. Start the measurement: Follow the on-screen prompt. Remain seated; keep the car level and doors closed until the progress bar completes.
7. Read the result: If “OK,” you’re done. If “Low,” add oil in 0.2–0.3 qt (200–300 ml) steps. If “High,” drain to spec before re-testing.
8. Repeat once: After correcting the level, run the measurement again to confirm. The warning should clear within the next drive cycle if the value is valid.

Here’s a compact reference for menu paths and waiting times you’ll use most often across generations. Use the next sentence as your rule of thumb: be patient, keep the car closed, and measure only when hot.

If your screen labels don’t match exactly, choose the closest “Car Status/Service” path shown here — Volvo updated wording across software versions, but the function is the same.

Common Mistakes That Prevent an Oil Level Reset from Working

Most failed attempts trace back to conditions that block a valid reading. Measuring when the oil is too cold or the car is on a slope nearly always returns “Unavailable” or an inaccurate bar. Opening the hood or a door mid-process interrupts the check on many models. Overfilling after a change is another frequent pitfall — the car will keep warning until the excess is drained. Finally, trying to measure immediately after shutdown without a short wait can produce unreliable values.

• Measuring cold: Drive to operating temp first; cold oil readings are rejected or imprecise.
• Non-level surface: Even slight inclines bias the sensor. Find truly flat ground.
• Overfilling: Adding “just in case” past the top mark forces a “High oil level” message.
• Interrupting the check: Don’t open doors/hood or toggle ignition during measurement.
• Wrong menu: Some P3 cars hide the function in Service & Repair, not general status.

If you also see a service reminder alongside the oil message, clear the maintenance alert separately after the level reads OK. Use our quick P3 service reset guide or the model-specific XC60 maintenance light reset.

Safety and Compatibility: When Not to Reset and What to Check First

Skip repeated re-measure attempts if the car reports “High oil level” after a recent change — correct the quantity first. Diesel owners who make short trips may see rising oil level due to fuel dilution; this needs an oil change, not a reset. T8 hybrids must be at full engine temperature; measuring after electric-only driving gives “Unavailable.” Always let the engine cool briefly before touching drain plugs or filters to avoid burns, and never crawl under a vehicle supported only by a jack.

Time, Cost, and When a Mechanic or VIDA Reset Is Required

A simple re-measure and top-up takes 10–20 minutes at home and often costs nothing. Overfill corrections add 30–60 minutes if you need to drain a small amount. If warnings persist after a correct fill and valid re-measure, a technician should check for a failed sensor, wiring fault, or software/ECM adaptation requirement. After sensor replacement, most shops use VIDA or a capable Volvo scanner to perform oil level adaptation/initialization. If you plan to do deeper diagnostics yourself, see our guide on using a Volvo-compatible scanner.

For adaptation and advanced resets, learn how to connect and navigate pro-grade tools here: how to use a professional car scanner on Volvo. You can also clear the separate maintenance reminder using our service light reset tutorial.

How To Prevent Oil Level Warnings After an Oil Change

Prevention comes down to filling the correct volume with Volvo-approved oil and validating the result under the right conditions. Turbocharged engines are sensitive to level errors; a small overfill can trigger a persistent warning, while a slight underfill can starve the turbo under hard loads. Measure twice: once via the electronic screen after a hot drive and again after a short cooldown. Log the exact quantity you used at each change so the next service can hit the target on the first try.

• Use the right capacity: Check your engine code and fill precisely to spec — then fine-tune by 200–300 ml.
• Warm-check habit: Always trigger measurement hot on level ground; avoid quick cold checks.
• Avoid “just in case” top-ups: Add oil in small increments and re-measure each time.
• Mind short trips (diesel): If the level creeps up, change oil sooner to remove fuel-diluted oil.
• Keep records: Note brand, viscosity, and volume used; it speeds future services.

Sticking to these habits makes the oil level message rare — and when it does appear, you’ll know exactly how to address it without overshooting the correct level.

A quick note before we wrap up. If you just serviced the car, you may still need to clear the maintenance reminder. Our XC60-specific walkthrough is here: reset the XC60 maintenance light.

Frequently Asked Questions

This FAQ covers the most common owner questions about re-measuring (resetting) oil level on modern Volvos: which models support it, exact timing, what to do when the screen shows “Unavailable,” whether VIDA or a scanner is required, and how to handle persistent “High oil level” messages after a service. It also clarifies the difference between oil level checks and the separate maintenance/service reminder reset so you can finish the job without a return trip to the shop.

Can I actually reset the oil level on a Volvo, or only re-measure it?

You re-measure it; there’s no true “reset” button. The electronic sensor takes a reading under specific conditions (hot engine, level ground, short wait). Once the quantity is correct, the message clears on its own. If the warning persists after a valid measurement, look for overfill/underfill, sensor faults, or fuel dilution on diesels.

How long should I wait after shutdown before measuring?

On SPA/CMA (2015+) cars, 2–3 minutes is typical. Late P3 cars often need 4–5 minutes. The goal is to let oil drain back to the pan without cooling completely. Keep doors and the hood closed during the wait and the measurement.

What does “Measurement unavailable” mean and how do I fix it?

It means the conditions weren’t valid: oil too cold, car not level, doors/hood opened, or the car was disturbed. Drive again to full temperature, find a perfectly flat spot, shut down, wait the correct time, and retry. If it never completes, have the sensor and wiring checked.

How do I clear a “High oil level” message after an oil change?

Drain to the correct spec; do not keep driving or try to reset around it. After removing excess oil, warm the engine, park level, wait 2–3 minutes, and run the measurement again. The warning clears once the reading shows OK. Persistent highs on diesels can indicate fuel dilution — change the oil.

Do I need VIDA or a scanner to reset oil level?

No for routine checks — the center display menu is enough. VIDA or a Volvo-capable scanner is needed if you replace the oil level sensor (for adaptation/initialization) or when troubleshooting a reading that won’t complete due to sensor or software issues.

Which Volvos have the on-screen oil level instead of a dipstick?

Most SPA/CMA models (XC90 2016+, XC60 2018+, XC40, S60/S90/V60/V90) and many late P3 cars show oil level on screen. Older P2/P80 models usually have a physical dipstick. Fully electric EX/EC models have no engine oil at all.

Is it safe to drive with an “Oil level low” warning?

A brief, gentle drive to a shop may be okay, but avoid high RPM and load. Top up immediately, then re-measure hot on level ground. For “High oil level,” avoid driving — drain to spec first to protect the catalyst/DPF and prevent crankcase pressure problems.

Final Verdict

Think of “How To Reset Volvo Oil Level” as teaching the car to take a fresh, valid reading. Warm it up, park level, wait a couple of minutes, and run the Oil Level → Measure function. Correct the quantity in small steps, then confirm with a second measurement. That resolves nearly all oil level messages without a shop visit. If you see repeated “High oil level” after a proper change, suspect overfill or diesel fuel dilution. When measurements won’t complete or errors persist, book a diagnosis — VIDA adaptation or a new sensor may be required. Finish by clearing the separate maintenance reminder if due.

For official menu references and your VIN-specific manual, see Volvo Support and Owner’s Manuals online: Volvo Cars Support USA and Owner Information.
