Quick Answer
A Volvo XC90 parts diagram shows how parts fit together and helps you identify the correct replacement. Choose a catalog for your exact model year, engine, and drivetrain. Compare the diagram and part number before ordering, since parts can differ between XC90 generations.
A Volvo XC90 parts diagram can save time when you need a replacement part. It can help you find a sensor, hose, engine component, body panel, or interior trim piece.
The main challenge is choosing the right diagram. An early XC90 and a newer XC90 Recharge use different systems and parts. Even two vehicles from the same year may have different equipment.
Start with your model year and VIN. The VIN is your vehicle identification number, a code that helps identify your exact vehicle. Use it to narrow the catalog search before buying anything.
What a Volvo XC90 Parts Diagram Shows

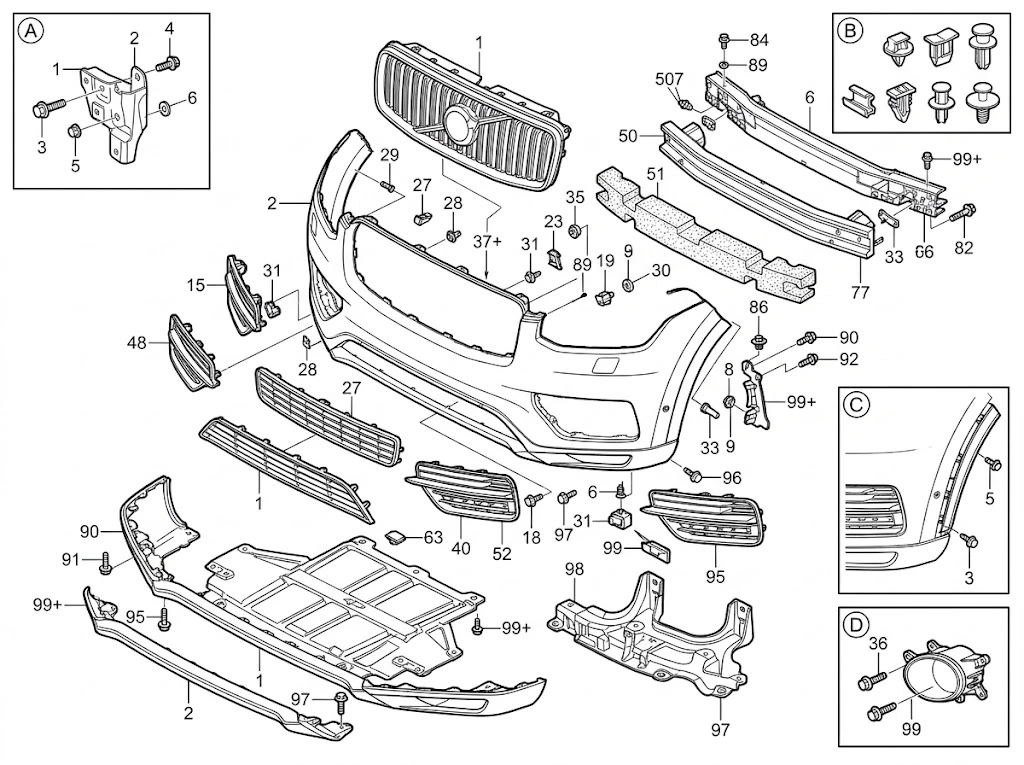

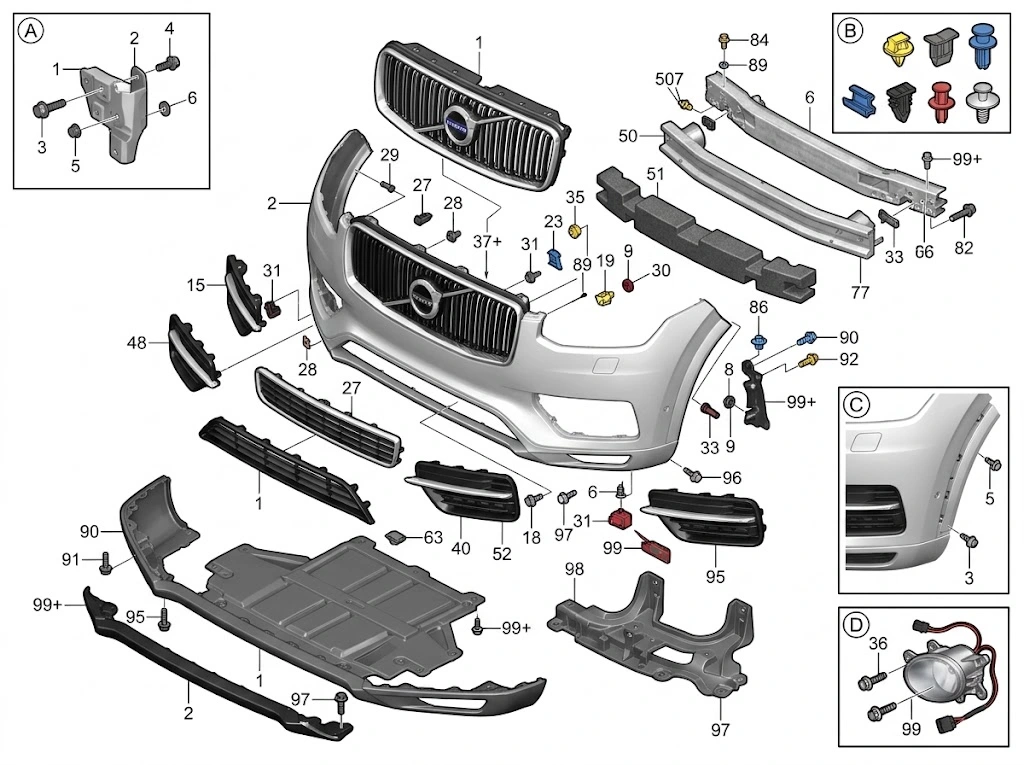

A parts diagram uses drawings to show how components fit together. Most catalogs group these drawings by vehicle system, assembly, and individual part.
Common diagram categories
Choose the category that matches the component you need. A diagram for the wrong system may show similar-looking parts that do not fit.
- Engine: Hoses, brackets, seals, and engine components.
- Cooling system: Radiator parts, coolant pipes, and related fittings.
- Transmission: Gearbox components and related hardware.
- Suspension: Control arms, springs, bushings, and related parts.
- Brakes: Pads, rotors, calipers, and mounting hardware.
- Body and interior: Bumpers, door trim, clips, and cabin fittings.
- Electrical system: Wiring components, connectors, and sensors.
How to read the diagram numbers
Many parts diagrams use numbered callouts beside each component. These numbers point to entries in a parts list, but they may not be the actual orderable part numbers.
Read the parts list beside the drawing. Check the part name, quantity, notes, and any listed replacement number before placing an order.
Where to Find XC90 Parts Diagrams
Several online resources can help you find diagrams and replacement parts. Their model-year coverage and level of technical detail vary.
1. Volvo dealer parts catalogs
A Volvo dealer parts catalog is a useful starting point for finding parts by model year. The Volvo XC90 parts and accessories catalog lists model years and links to a replacement-parts catalog.
Select your XC90 year and check the available catalog sections. Confirm the exact fitment before ordering, especially for engine, electrical, and drivetrain parts.
2. OpenVIDA parts catalog
OpenVIDA provides an open-source parts catalog and repair-document resource for Volvo vehicles up to model year 2016. It lets users select a vehicle profile and browse parts information.
This resource may help owners of older XC90 models. It does not cover every newer XC90, so use another suitable catalog for later vehicles.
3. Official Volvo owner information
Volvo’s owner resources can help you identify your vehicle and find relevant support information. Start with the official Volvo Cars USA website and select the support options available for your vehicle.
A parts diagram is not the same as a repair manual. Use verified service instructions for removal, installation, tightening, and safety procedures.
How to Find the Correct XC90 Diagram
Follow these steps to narrow the search and reduce the risk of ordering the wrong part. The exact catalog options depend on your vehicle and the resource you use.
Step 1: Identify your model year
Find the model year from your vehicle records or registration documents. Do not rely only on the date the vehicle was first registered.
Step 2: Record the VIN
Use the VIN to confirm the vehicle details with a dealer or a suitable parts catalog. Share it only with a trusted provider when fitment checks require it.
Step 3: Select the right system
Choose the category that matches the part you need. For example, use the cooling-system section for a coolant hose rather than a general engine illustration.
Step 4: Match the callout and part number
Find the component in the drawing and match its callout to the parts list. Record the listed part number and check any notes about vehicle options.
Step 5: Confirm fitment before buying
Ask the seller or Volvo parts department to confirm compatibility using your VIN. Check whether the part has been replaced by a newer number or requires extra hardware.
XC90 Generations and Parts Compatibility
The XC90 has changed across its production history. Engine layouts, electrical systems, body parts, and drivetrain components may differ by generation and powertrain.
First-generation XC90
The first-generation XC90 arrived for the 2003 model year in the United States. Depending on year and market, it used different engines and drivetrain options.
Owners should match diagrams to the exact engine and vehicle configuration. A drawing for a five-cylinder turbo engine may not apply to a six-cylinder or V8 model.
Second-generation XC90
The second-generation XC90 arrived for the 2016 model year. Its engine family, electronics, and available hybrid systems differ from those in the earlier generation.
Use the correct model-year catalog for T5, T6, T8, B5, B6, and other applicable versions. These labels do not guarantee that a component is shared across all years.
XC90 Recharge plug-in hybrid
The XC90 Recharge combines a gasoline engine with electric-drive components. Some parts belong to the gasoline system, while others are specific to the hybrid system.
Never open or disconnect high-voltage components based on a parts drawing alone. Leave high-voltage diagnosis and repair to a qualified technician with the correct training and equipment.
Parts that need extra checking
Some parts are more sensitive to changes in model year or equipment. Confirm these items carefully before buying.
- Engine sensors, hoses, and brackets.
- Transmission and all-wheel-drive components.
- Headlights, taillights, and bumper parts.
- Electronic control modules and wiring connectors.
- Hybrid batteries and high-voltage components.
How to Check an XC90 Part Number
A matching part number is often more useful than a similar-looking shape. Still, a number alone may not prove compatibility if a part has changed or been superseded.
Use the parts list, not just the drawing
Find the number attached to the diagram’s callout. Then check the catalog entry for the full part number, description, quantity, and fitment notes.
Some catalog entries list a replacement number. Ask the seller to confirm that the newer number officially replaces the original part for your vehicle.
Check used and aftermarket parts
Used and aftermarket parts can have different fitment limits. Compare the seller’s compatibility list with your vehicle details, not just the product photo.
For electrical parts, check the connector, software requirements, and any programming needs. A component that physically fits may still fail to work correctly.
Useful details to prepare
Have these details ready before contacting a parts supplier. They can help the supplier narrow the search.
- XC90 model year and engine type.
- VIN, when needed for a fitment lookup.
- Part name and location on the vehicle.
- Original part number, if available.
- Photos of the old part and its connectors.
Common Parts Diagram Mistakes
A diagram helps identify components, but it cannot confirm every fitment detail by itself. Avoid these common errors before ordering parts.
Choosing a diagram from another year
A similar drawing may hide changes in brackets, connectors, or mounting points. Return to the catalog and select the exact model year and configuration.
Confusing a callout number with a part number
The number printed beside a drawing often points to a catalog entry. It may not be the number printed on the part or used for ordering.
Ignoring small hardware
Clips, seals, bolts, and brackets may be listed separately. Check the diagram’s notes and quantity column to see which items you need.
Assuming every part is a DIY repair
A diagram shows component relationships, not the full repair process. Brakes, steering, fuel systems, and hybrid electrical systems may require special tools or professional service.
XC90 Parts Diagram Questions
These answers cover common questions about finding and using Volvo XC90 parts diagrams. Check your exact vehicle details before ordering a replacement.
Where can I find a free Volvo XC90 parts diagram?
OpenVIDA offers a free, open-source parts catalog for Volvo vehicles up to model year 2016. Dealer parts catalogs may also provide access to diagrams or parts listings.
Can I use one parts diagram for every XC90 year?
No. Parts and assemblies can change by model year, engine, drivetrain, and equipment. Select the correct vehicle profile before using a diagram.
How do I find a Volvo XC90 part number?
Locate the component in the diagram, then match its callout to the catalog list. Confirm the number and fitment with a parts supplier before ordering.
Does a parts diagram include repair instructions?
Not always. A parts diagram mainly identifies components and how they relate to an assembly. Use a suitable repair manual for installation and safety steps.
Can I find an XC90 Recharge parts diagram?
Yes, but you need a catalog that supports the exact Recharge model year and powertrain. High-voltage components should only be serviced by qualified technicians.
How can I tell if an XC90 part will fit?
Check the model year, engine, drivetrain, catalog part number, and fitment notes. A VIN-based check by a Volvo parts supplier can help confirm compatibility.
Are aftermarket XC90 parts safe to use?
Some aftermarket parts may be suitable, but quality and fitment vary. Check the part specification, vehicle compatibility, seller terms, and any safety requirements before buying.
Choose Your Next Parts Lookup
Start with your model year and the part’s location. Use a matching catalog, then confirm the part number with a trusted supplier before ordering.
For related ownership information, see the Volvo XC90 scheduled maintenance guide and the article on common Volvo XC90 engine issues. These can help you identify the system that needs attention.
If you cannot find the right diagram, contact a Volvo parts department with your model year, VIN, and a clear description of the component. Ask for the diagram section and current orderable part number.
